How to use lightning/logger module in LWC


02/07/2024





What is Lightning logger module

The lightning/logger module provides a function to add observability and track to your Lightning web components using the Custom Component Instrumentation API. Use the log() function to log custom messages to Event Monitoring from your components.

The lightning/logger module is only available in LightningExperience and this is not available in salesforce mobile app. To use lightning/logger module event moniter is must be enabled in your org. This module has only one log() method.



Lightning Logger event type:

The lightning logger event contains information from the Lightning Web Components logs. This event type is available in the EventLogFile object in API version 58.0 and later.



How to enable lightning logger event:

To enable Lightning Logger events, from Setup, in the Quick Find box, enter event, and then select Event Monitoring Settings. Turn on the option - Enable Lightning Logger Events.





The lightning/logger module return below fields:

Field Details
EVENT_TYPE This is string type. Show the event type. Its value always LightningLogger.
TIMESTAMP This is string type. The access time of Salesforce services in GMT.
REQUEST_ID This is string type. Show the unique ID of a single transaction. A transaction can contain one or more events. Each event in a given transaction has the same REQUEST_ID. Ex: TID:104194039000091a94
ORGANIZATION_ID This is string type. Show the 15 character ID of the org.
USER_ID This is string type. Show the 15-character ID of the user accessing Salesforce services through the UI or API..
DEVICE_SESSION_ID This is string type. Show the unique identifier of the use sesson based on page load time. When page is reload new session is started.
UI_EVENT_TIMESTAMP This is Number type. Show event's timestamp (in milliseconds)..
UI_EVENT_RELATIVE_TIMESTAMP This is Number type. How long (in milliseconds) it took between a message being logged and the tab opening..
UI_ROOT_ACTIVITY_ID This is string type. Which is use to show name of the application the use accessed.
USER_TYPE This is string type. What kind of Salesforce access the user has (standard, community, etc.) based on their license. Customer Portal User, External Who, Self-Service, Guest, Package License Manager, Salesforce to Salesforce, CSN Only, Power Custom, Custom, Partner, Customer Portal Manager, Standard, Salesforce Administrator
CLIENT_ID This is string type. Show the API client ID.
SESSION_KEY This is string type. A session ID is a unique code that tracks your activity in Lightning Experience until you log out. A new ID is created each time you log in again.
LOGIN_KEY This is string type. Show the It starts with a login event and ends with either a logout event or the user session expiring.
CLIENT_GEO This is string type. Show the GEO location of the client. Country | State
CONNECTION_TYPE This is string type. Show the connection type. Ex: 4g
APP_NAME This is string type. Which is use to show name of the application the use accessed.
SDK_APP_VERSION This is string type.SHow the mobile SDK version number.
DEVICE_PLATFORM This is string type. The type of application experience in name:experience:form format.
DEVICE_MODEL This is string type. Show the device model name. Ex: iPad, iPhone.
SDK_VERSION This is string type. Which is use to show name of the application the use accessed.
BROWSER_NAME This is string type. Show the name of browser that the user accessed.
BROWSER_VERSION This is string type. Show the browser version in major.minor format. Some browser do not provide a mino version.
OS_NAME This is string type. Show the name of operating system. Ex:windows.
OS_VERSION This is string type. Show the operating system version.
PAGE_URL This is string type. Show the relative url of the top-level lightning experience or salesforce mobile app page that user opened. The page contain one or more Lightning components. Multiple record IDs can be associated with PAGE_URL. Ex: /lightning/page/home.
PAGE_ENTITY_TYPE This is string type. Show he entity type of the page being displayed.
PAGE_CONTEXT This is string type. Show the name of the component hosting the main page content..
PAGE_ENTITY_ID This is Id type. The entity ID (if any) of the record being displayed..
SDK_APP_TYPE This is string type. Show the mobile SDK application type. Possible values are: HYBRID, HYBRIDLOCAL, HYBRIDREMOTE, NATIVE, REACTNATIVE.
MESSAGE This is string type. The message passed to the lightning/logger log() method. The message can be JSON object or a string. String length is limited to 4KB (4096) character.
TIMESTAMP_DERIVED This is DateTime type.The access time of Salesforce services in ISO8601-compatible format (YYYY-MM-DDTHH:MM:SS.sssZ).
USER_ID_DERIVED This is Id type. Show the 18-character case-insensitive ID of the user who’s using Salesforce services through the UI or the API.
CLIENT_IP This is string type. Show the IP address of the client that using Salesforce services. Ex: 49.32.432.23.



LoggerController.cls
public with sharing class LoggerController {

    @AuraEnabled(cacheable=true)
    public static List<Account> getAccountForLogger(){
        try{
            List<Account> acc = [SELECT Id, Name, Type, Amount__c, BillingCountry FROM Account];
            return acc;
        }
        catch(Exception e){
            throw new AuraHandledException(e.getMessage());
        }
    }
}



lightningLogger.html
<template>
    <lightning-card>
        <div class="slds-p-around_medium">
            <lightning-button label="Approve" onclick={handleLog}></lightning-button>
        </div>
    </lightning-card>
</template>



lightningLogger.js
import { LightningElement } from 'lwc';
import getAccountForLogger from '@salesforce/apex/PaginationController.getAccountForLogger';
import { log } from 'lightning/logger';

export default class LightningLogger extends LightningElement {

  handleLog() {
    getAccountForLogger()
    .then((res)=>{
      log(res);
    })
    .catch((error)=>{
      log(error)
    })
  }
}



lightningLogger.js-meta.xml
<?xml version="1.0" encoding="UTF-8"?>
<LightningComponentBundle xmlns="http://soap.sforce.com/2006/04/metadata">
    <apiVersion>59.0</apiVersion>
    <isExposed>true</isExposed>
    <targets>
      <target>lightning__HomePage</target>
      <target>lightning__RecordPage</target>
      <target>lightningCommunity__Page</target>
    </targets>
</LightningComponentBundle>



LWC screen:

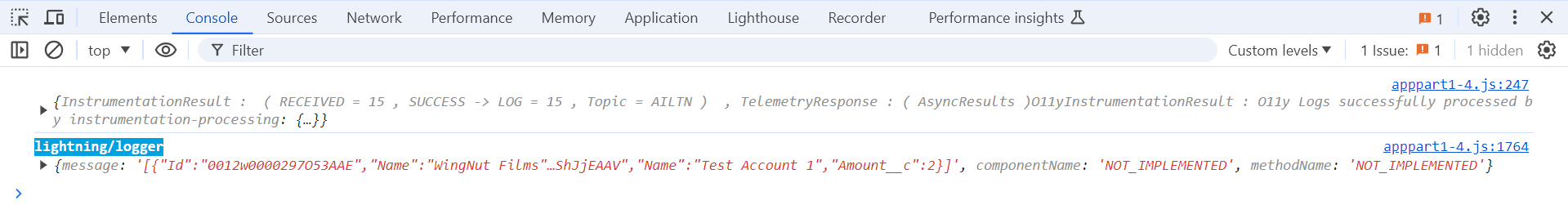

See log on console:

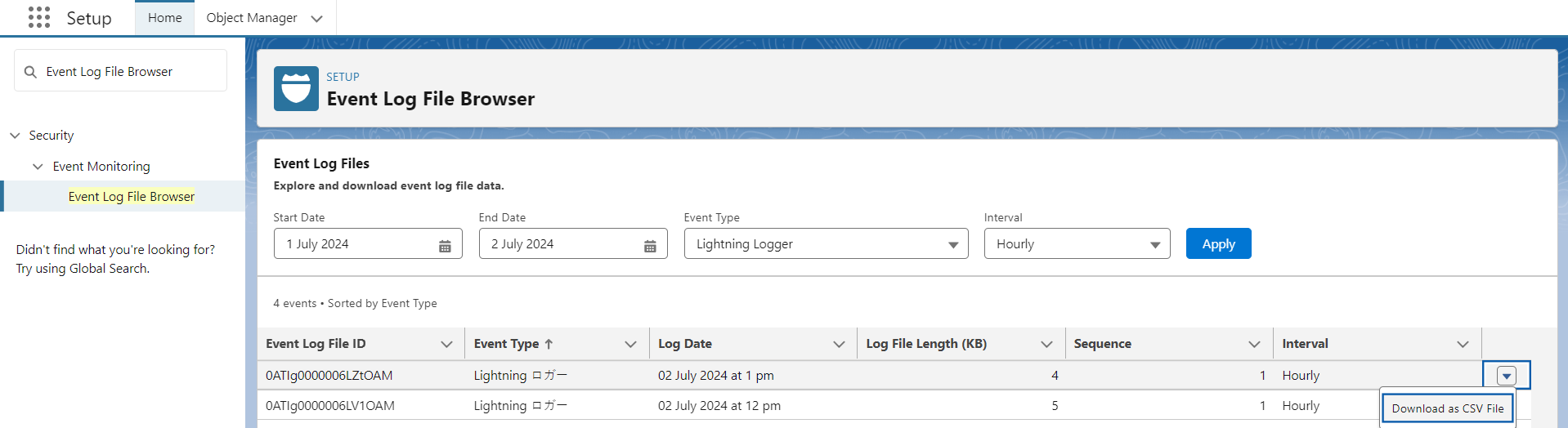

See the event log file:

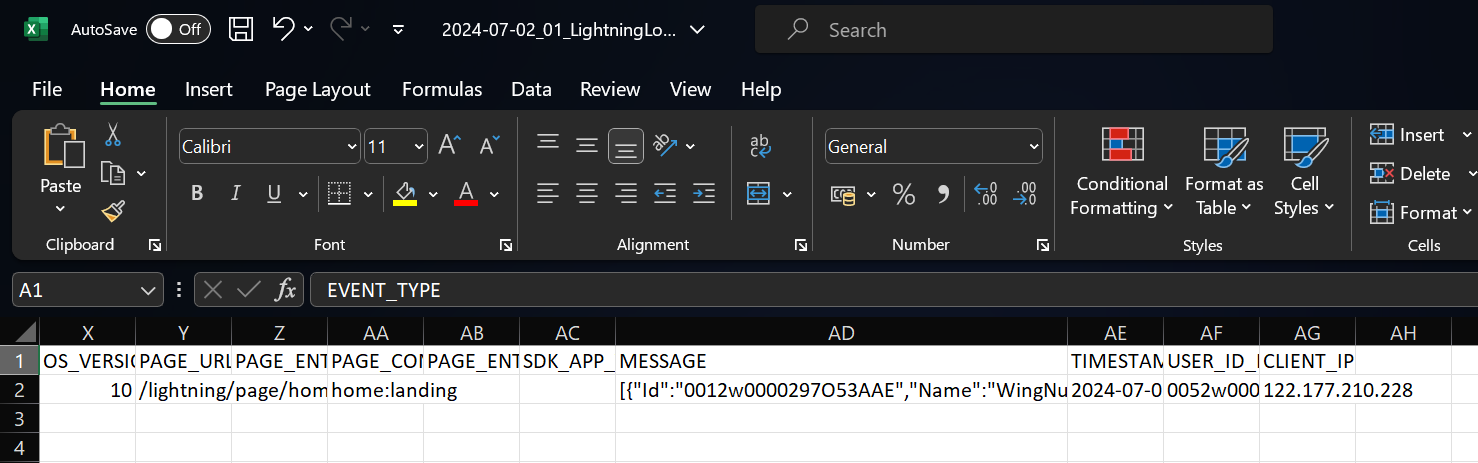

See the Log file in MS Excel file:
